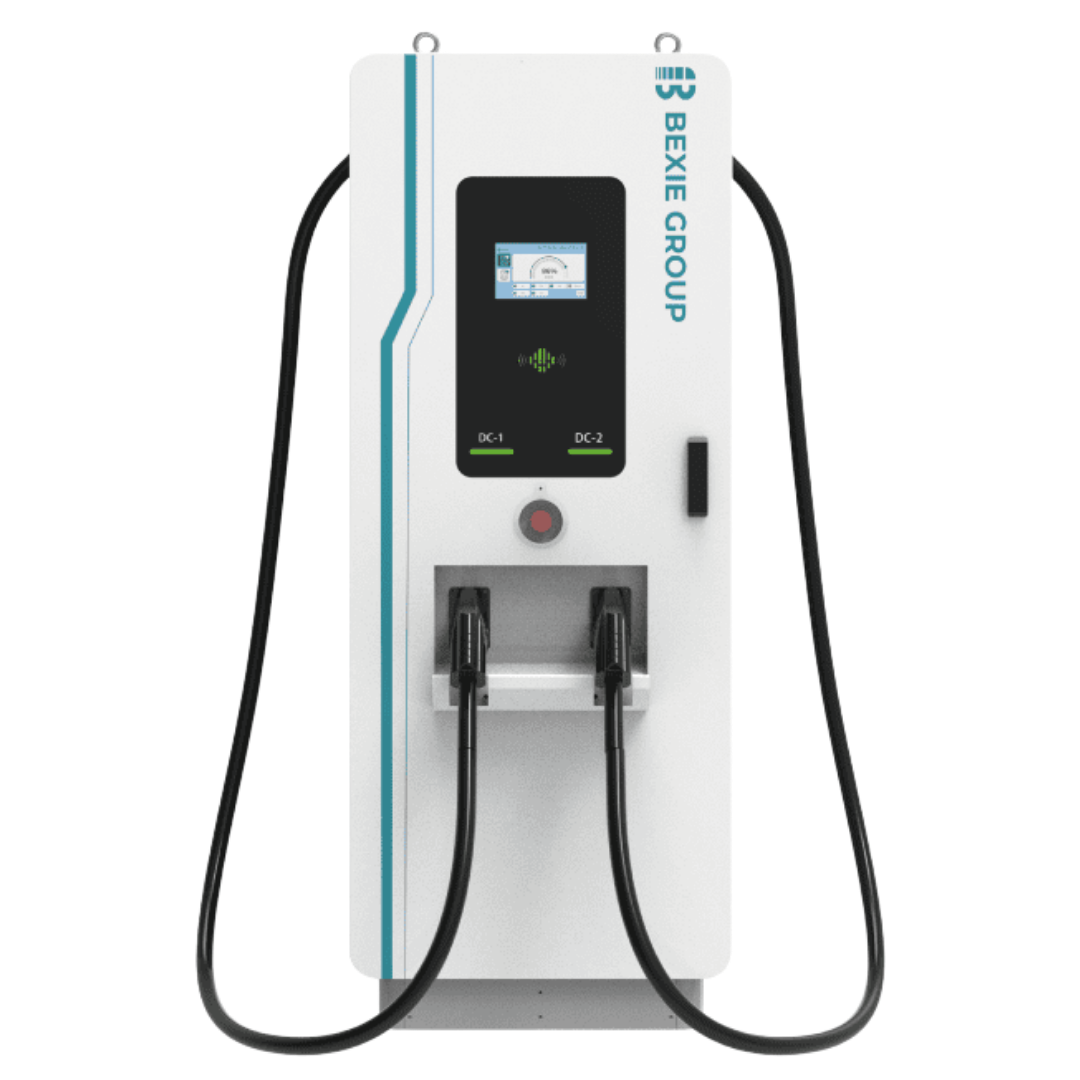

EV Charging Station · BXC 60–120KW
DC fast charging station for electric vehicles with power ratings from 60 to 120 kW. Features touchscreen, card reader, energy metering module and integrated communication. CE-RED certified. Solution for public car parks, business fleets and large retail premises.
Overview
Bexie Energy’s BXC 60-120 kW DC fast EV charging station is an ultra-fast direct current (DC) charging solution designed for public and private electric mobility infrastructure. With power ratings configurable between 60 and 120 kW, it allows most electric vehicles to be recharged in under 30 minutes.
It integrates power conversion, charging control, metering, communication and access management functions into a single unit, offering a complete solution ready to deploy in any high-demand environment.
Technical specifications of the DC fast charging station
- Charging power: 60 kW – 120 kW (DC)
- Charging type: direct current (fast charging)
- Display: interactive touchscreen
- Access: integrated card reader
- Modules: energy metering, charging control, communication
- Dimensions: 800 x 800 x 2000 mm
- Weight: ≤ 350 kg
- Certification: CE-RED
Applications of DC fast charging
- Motorways and service areas
- Public and private car parks
- Retail centres and large retail premises
- Corporate electric vehicle fleets
- EV dealerships and workshops
- Hotels and petrol stations
- Industrial and logistics estates
Integrated system modules
The BXC station integrates all the components needed for autonomous and managed operation:
- Power conversion module: converts grid AC current into DC current for direct vehicle charging
- Charging control module: manages the charging session and communication with the vehicle
- Energy metering module: records consumption per session for billing and auditing
- Communication module: connectivity for remote management and OCPP platforms
- Control interface: touchscreen for direct user interaction
Management and connectivity
The BXC DC fast charging station is compatible with industry-standard protocols for integration into public and private charging networks.
- Compatible with OCPP 1.6 / 2.0 protocol
- Remote management of charging sessions
- RFID card access control
- Billing per session or per kWh
- Real-time monitoring of equipment status
- Remote firmware updates
Safety and certifications
- CE-RED certification
- Overvoltage and overcurrent protection
- Galvanic isolation between grid and vehicle
- Earth fault detection
- Active thermal protection
- Robust casing for outdoor use
Advantages of fast charging over slow charging
- Recharge from 20% to 80% in under 30 minutes at 150 kW
- Ideal for users in transit or fleets with high turnover
- Greater profitability per installed charging point
- Attracts customers to retail and services during the wait
- Ready for current and future high-capacity vehicles
Integration with the Bexie energy ecosystem
The BXC station can be integrated with our solar self-consumption systems, storage batteries and the Bexie Monitoring platform for complete and optimised energy management of the charging point.
Frequently asked questions about fast charging stations
What’s the difference between DC fast charging and AC charging?
DC (direct current) charging converts the energy inside the charger itself and delivers it directly to the vehicle’s battery, allowing much higher power ratings (60-120 kW). AC charging uses the vehicle’s onboard charger, limiting the power to 7.4-22 kW.
Which vehicles is it compatible with?
It’s compatible with all electric vehicles that accept DC fast charging through CCS2, CHAdeMO or GB/T connectors depending on the unit’s configuration.
How long does it take to charge an electric car?
At 150 kW, a vehicle with a 75 kWh battery can be charged from 20% to 80% in approximately 20-25 minutes, depending on the charging limit accepted by the vehicle.
Can it be integrated into a public charging network?
Yes, it’s compatible with the OCPP protocol and can be integrated into charging network management platforms for billing, booking and remote monitoring.
What maintenance does it require?
Maintenance is minimal. An annual inspection of the cooling system, electrical connections and firmware updates is recommended. Bexie offers preventive maintenance contracts.
